VICTRON

Victron

PRODUCT OPTIONS


NAME

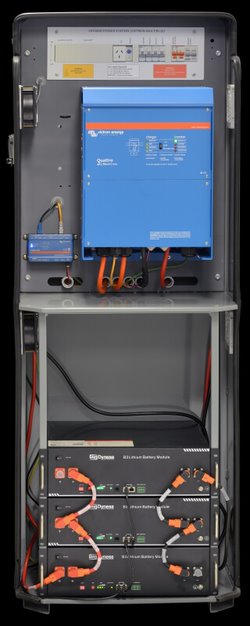

VICTRON 3KVA

Application

Tiny House

System Code

OGN 3V10

Battery Type

Lithium Iron Phosphate

Battery kWh

10.2

Solar kW

As required

Inverter Type

Offgrid

Rated Current Amps

13

Inverter Continuous Power (kW)

2.4

Peak Power kW

5.5

Autostart Generator wiring included

Yes

Built in switch board 3 x RCBO

Yes

4G Wifi Modem included with 6 months data

Yes

Warranty (Inv+Batt+PV)

5+10+25

Dimensions (h x w x d mm)

1150 x 630 x 480

Typical Usage

LED lights, TV, light kitchen appliances, electric oven, dishwasher, water pump, washing machine, gas hot water, gas cooktop

Check to compare
NAME

VICTRON 5KVA

Application

Eco Cottage

System Code

OGN 5V15

Battery Type

Lithium Iron Phosphate

Battery kWh

15.3

Solar kW

As required

Inverter Type

Offgrid

Rated Current Amps

20

Inverter Continuous Power (kW)

4

Peak Power kW

9

Autostart Generator wiring included

Yes

Built in switch board 3 x RCBO

Yes

4G Wifi Modem included with 6 months data

Yes

Warranty (Inv+Batt+PV)

5+10+25

Dimensions (h x w x d mm)

1300 x 630 x 480

Typical Usage

LED lights, TV, medium kitchen appliances, electric oven, dishwasher, water pump,washing machine, gas hot water, gas cooktop + Small AC system

Check to compare
NAME

VICTRON 10KVA

Application

Residential

System Code

OGN 10V20

Battery Type

Lithium Iron Phosphate

Battery kWh

20.4

Solar kW

As required

Inverter Type

Offgrid

Rated Current Amps

40

Inverter Continuous Power (kW)

8

Peak Power kW

18

Autostart Generator wiring included

Yes

Built in switch board 3 x RCBO

Yes

4G Wifi Modem included with 6 months data

Yes

Warranty (Inv+Batt+PV)

5+10+25

Dimensions (h x w x d mm)

1550 x 630 x 480

Typical Usage

LED lights, TV, heavy kitchen appliances, electric oven, dishwasher, water pump,washing machine, heatpump dryer, heat pump hot water, induction cooktop, multiple AC system

Check to compare

OffGridNow Power Systems

What Clients Saying

OFF GRID NOW. That says it all, yep are “off grid now” and its fantastic. Our commercial property with a 2 bedroom rental unit above in the middle of Noosa QLD runs completely off grid with a Maximus 3 phase and 12kW inverter. Its worked way beyond my expectations. Gone are the power bills, we pay them nothing, our surplus power is fed back into the grid and in comes payments from the electricity company. We then tested “off grid now” by adding an EV charger to the system. Now I thought that’s pushing it. Well not at all. I am converted. The batteries were housed in a really well made waterproof box. I opted to have the box
located inside simply for wiring convince. Its been almost 12 months since the install, The system has worked faultlessly. We had only one instance we needed the help desk when installing the EV. The response was very fast and the resolved virtually instantly. WOW. Regards, Warwick Noosa

Warwick

Noosa QLD

I have been living totally off-grid now for over 2 years. Having the Offgrid Now Power System installed on my Tiny house has been an invaluable asset to my off-grid living. This system has kept producing power sufficiently even when there has been weeks of cloudy, rainy weather. The staff at Offgrid Now have been an amazing advocate for the after sales service and are always available to assist with any questions I may have regarding the Smartphone App and the few times it has gone offline due to technical internet access issues. Thank you for the ongoing support. Sue from Cooroy Qld

Sue

Cooroy QLD

I purchased a 3.8KW Off Grid Now kit from Enopte for my new tiny home built by LJM Tiny Homes.
The system has worked well and I have been very satisfied with the product.
Mark has also been very helpful in assisting me initially set up the system, linking it to the back-up generator, helping me with the Solarman App, arranging for an additional battery and upgrading the modem after experiencing some challenges with the Wi-fi connection.

Simon Forest

Victor Harbour SA

We are really impressed with the Offgridnow system on our 3 bed Eco Cottage which is fitted out with a full set of household appliances including AC system. Its been running perfectly since the day of installation, plenty of power during sunny and even overcast days…

Connie and Jason

Agnes Waters
